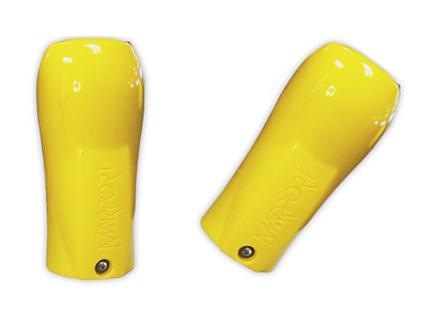

Catch Sensor CS-400

Key features

  • Uses 3 pcs standard flashlight batteries  - LR20.
  • Battery capacity can easily be checked and replacement of batteries is very simple.
  • Damaged coating can be replaced onboard.
  • The catch sensor has a very stabile signal, 2 minutes after activating of the sensor the timer starts.
  • An indication on the display shows how many hours the catch sensor has been activated.
  • CS-400 can be used for all Imagenex systems, it can also be used for other systems.
Contact us
Categories: ,

Catch sensor CS-400

Catch sensor for trawl sonar with approx. 1.000 operation hours in sea, with 3pcs of normal LR20 batteries. Stable signal output witch stars when sensor has seawater connections. The clock starts counting 2 minutes after activation of the tension spring. Simple indicator show how many hours the sensor has been active. User-friendly battery that can easily be done on board. Operating frequency is 70 kHz.

Downloads:
