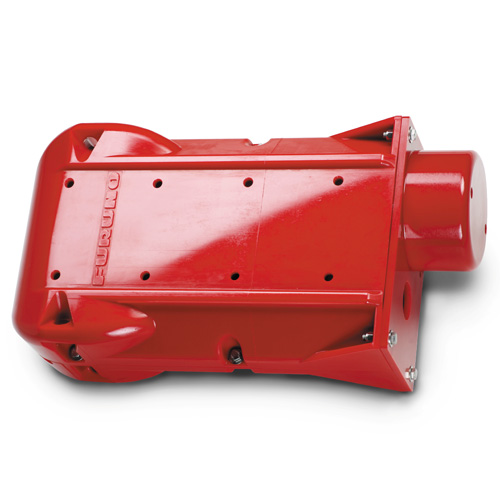

Trawl Sonar TS-331A

Key features

  • Vertical sonar 180/360 scan ( or other sectors), scale from 10 to 250m
  • Built in echosounder, scale from 50 to 300m.
  • Built in temperatur, depth, roll and pitch sensor.
  • Up to 4 catch sensors can be displayed.
  • The sonar is based on Windows XP, with several user settings and display layout.
  • Easy operation with trackball.
  • For depths down to 2000m.
Contact us
Categories: ,

Trawl sonar TS-331A

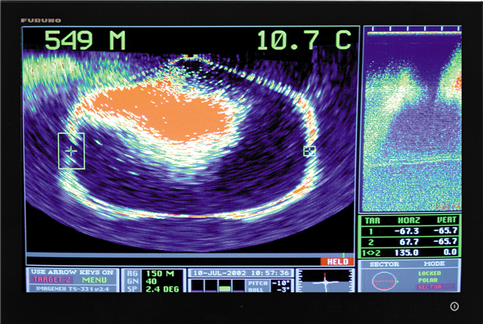

Vertical scanning sonar 180/360 ° (or other sectors). dual frequency vertical sonar, 330kHz, 10-250 m scale. Sounder: 120 kHz, 50-300 m scale. Digital signal processing, Windows based. Operated with mouse/trackball. Full Windows layout with many own user settings. Temperature sensor. Depth sensor. Roll & Pitch sensor. Up to 4 Catch Sensor Interface. Approved for depths down to 2000 m. Voltage: 220V AC.

Standardsett inkluderer:
1 stk undervannsenhet
1 stk broprosessor
1 stk datamus
