Furuno offers maritime radars for all types of vessels. Find the model that best fits your needs in our overview below.
IMO APPROVED RADAR MODELS
| All our IMO-approved radars are wheelmarked in the product presentation. These models have associated type approval certificates that document the performance of the radar, various accessories as well as the screens approved for the respective models. |
NXT RADAR MODELS
| As the world’s first supplier Furuno offers a complete IMO-approved solid-state (magnetron-free) radar system, consisting of both X-band and S-band radar. The models are part of a radar series we call NXT, which includes both IMO and non-IMO models. Solid-state radar technology provides higher performance, improves situational awareness and can thus contribute to increased safety. |
NON-IMO RADAR MODELS
| We offer a number of radar models for vessels that do not have requirements for an IMO-approved radar. We offer both stand-alone models with optional screen and compact solutions where screen and processor are integrated. |
|
| Our network radars are integrated with TimeZero or NavNet. The radar image is presented on its own or split screen in one of these platforms and the operation is integrated. |
FURUNO RADAR OVERVIEW
IMO X-band radar FAR-2318 (12 kW)
Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image. Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) that is easily turned on or off. Quick target acquiring has significantly improved the target tracking function, including for the smaller and fast moving targets. Interswitch supported also with FAR-3xxx, FAR-2xx7 and FAR-15x8. Compatible with Furuno Oil- and Ice radar.
IMO Solid State X-band radar FAR-2328 NXT (600W)
Clean and clear radar image and excellent detection capability. Solid-state radar technology provides higher performance in terms of increased range and more nuanced noise filtering. The new Target Analyzer™, Fast Target Tracking™ and Auto Target Acquire™ features also take advantage of Doppler technology. This provides quick and accurate detection and identification of targets. Approved for CAT 1, CAT 2, CAT 3, CAT 1H and CAT 2H depending on antenna rpm and monitor.
IMO X-band radar FAR-2328 (25 kW)
Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image. Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) that is easily turned on or off. Quick target acquiring has significantly improved the target tracking function, including for the smaller and fast moving targets. Interswitch supported also with FAR-3xxx, FAR-2xx7 and FAR-15x8. Compatible with Furuno Oil- and Ice radar.
IMO S-band solid state radar FAR-2338S NXT (250 W)
Solid State radar with 250W output power. Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image. Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) that is easily turned on or off. Quick target acquiring has significantly improved the target tracking function, including for the smaller and fast moving targets. Can be installed as a stand-alone radar or be one of the MFD (Multi Function Display) stations in the Furuno Voyager INS. Compatible with Furuno Oil- and Ice radar.
IMO approved S-band FAR-2338S (30 kW)
Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image. Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) that is easily turned on or off. Quick target acquiring has significantly improved the target tracking function, including for the smaller and fast moving targets. Interswitch supported also with FAR-3xxx, FAR-2xx7 and FAR-15x8
IMO X-band chart radar FAR-3210 (12 kW)
Chart radar with 12 kW transmission effect. Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image.
Can be configured as a stand-alone radar or as one of the MFDs (multi function display) in the Furuno Voyager INS. Features automatic clutter elimination and fast target tracking. Compatible with Furuno Oil- and Ice radar.
IMO X-band solid state chart radar FAR-3220 NXT (600W)
Solid State chart radar with 600W output power. With Solid State technology an even clearer echo image is obtained, including small vessels and other objects returning a weak echo. The range is increased and clutter is reduced to a minimum, leaving the navigator with an accurate presentation for improved situational awareness.
Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) that is easily turned on or off. Quick target acquiring has improved the target tracking function also for the fast moving targets. This model can be installed as a stand-alone radar or be one of the MFD (Multi Function Display) stations in the Furuno Voyager INS.
IMO X-band chart radar FAR-3220 (25 kW)
Chart radar with 25 kW transmission effect. Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image. Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) can easily turned on/off. Quick target acquiring has improved the target tracking function also for the fast moving targets. Can be installed as a stand-alone radar or be one of the MFD (Multi Function Display) stations in the Furuno Voyager INS. Compatible with Furuno Oil- and Ice radar.
IMO S-band solid state chart radar FAR-3230 SSD (250W)
Solid State chart radar with 250W output power. With Solid State technology an even clearer echo image is obtained, including small vessels and other objects returning a weak echo. The range is increased and clutter is reduced to a minimum, leaving the navigator with an accurate presentation for improved situational awareness.
IMO S-band chart radar FAR-3230 (30 kW)
Chart radar with 30 kW transmission effect. Minimum antenna maintenance is required due to the new aerodynamic antenna design and brushless motor. All signal conversion is handled in the antenna module to avoid any signal loss between antenna and processor thus creating the sharpest possible radar image.
Automatic clutter elimination filter (ACE – Automatic Clutter Elimination) that is easily turned on or off. Quick target acquiring has improved the target tracking function also for the fast moving targets. This model can be installed as a stand-alone radar or be one of the MFD (Multi Function Display) stations in the Furuno Voyager INS. Compatible with Furuno Oil- and Ice radar.
IMO X-band radar FAR-1518
New radar model with new function to obtain secure navigation during navigation under difficult weather conditions. This radar is suitable for all kind of vessel up to 10.000 GT. Delivered with a 19’’ monitor.
Wave radar for monitoring and analysis of waves
Furuno wave radar WV-100 uses raw echo data from the Furuno navigation radar to analyze sea surface echoes. The analysis results in a real time presentation of wave patterns and characteristics. Whenever wave heights exceeds defined threshold values for safe operation, an alarm is issued and a report log is created and may be used for documentation of operation interruption.
Oil spill detection radar FOIL-200
Furuno oil radar can be used in offshore and onshore installations as an add-on module to the Furuno navigation radar. The installation can be done onboard the vessels, oil rigs or any other platform where the radar is needed to detect oil spill.
Ice radar FICE-100
Find the best route through the ice with the Furuno ice radar FICE-100. The ice radar highlights echoes from the tracks of other ships and icebreakers. Finding and using these tracks saves both time and fuel. Echoes from icebergs or ice gravel are also indicated so that these can be avoided.
Downloads:
FAR-1513 BB
New radar model with new function to obtain secure navigation during navigation under difficult weather conditions. This radar is suitable for all kind of vessel that has no demand for wheelmarked radars.
Downloads:
High performance radar for river use and high-speed craft
FURUNO's MODEL 1937 is a high contrast 10.4 color LCD Radar suited for the vessels sailing in narrow areas such as rivers. The radar features a high speed antenna rotation providing faster update rate of the radar image which gives the operator an earlier notification to avoid corruption.
Downloads:

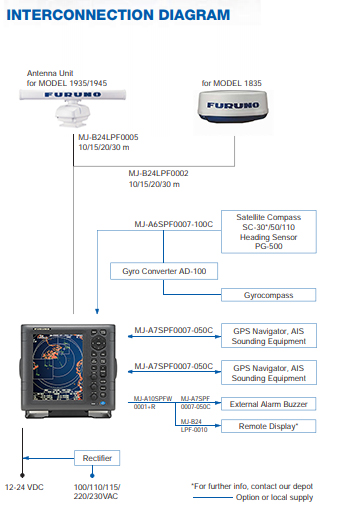

10.4 Multi-Color LCD radar (4 kW)
Bringing a New Level of Quality, Operability, and Reliability into Marine Radar.
Downloads:

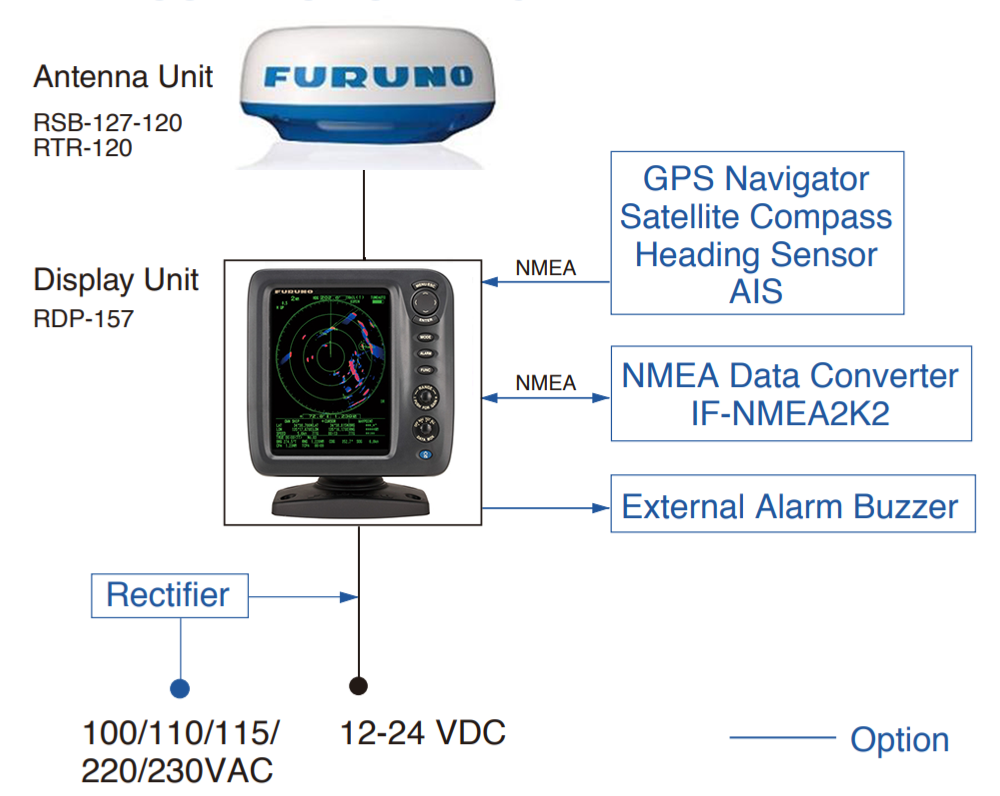

Colour LCD radar, M-1815
M-1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use, intuitive controls, while maintaining the high performance you expect from Furuno products.
Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations, such as fly bridges.
M-1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.
Downloads:
Solid state network radar DRS 6A NXT (25 W)
Prisbelønt Solid State radar med target analyzer hvor farlige møtende eller kryssende ekko blir røde og bird-mode for å se fugler (signaliserer fisk). Kan følge to forskjellige avstander samtidig. Justerbar åpningsvinkel helt ned til 0,7 grader med XN-13A antenne.
Network radar X-Class (magnetron)
DRS-6 X class serien erstatter DRS-4A og DRS-6A. Forbedret mottaker og avansert signalbehandling gir krystallklare ekko, både på kort og lang avstand. Lynrask målfølging av opp til 30 båter. Ny kompakt antenne.
Downloads:
Solid state network radar DRS 4D NXT (25 W)
Solid state radar med target analyzer hvor farlige møtende eller kryssende ekko blir røde og bird-mode for å se fugler (signaliserer fisk). Kan følge to forskjellige avstander samtidig. RezBoost teknologi som gir ekstremt skarpt bilde. Justerbar åpningsvinkel på antenne fra 2 til 3,9 grader.
Downloads:
Network radar DRS 4DL+ (magnetron)
DRS 4DL+ has a compact 45 cm radome antenna with UHD digital signal processing.
WiFi network radar for iPad and iPhone
Discover the world’s first wireless Radar that you can access directly from your iOS devices! Move around and explore. With the new FURUNO 1st Watch Wireless Radar (DRS4W Wi-Fi RADAR), you can do things previously impossible. You can bring the Radar display whenever you go, even put it on the iPhone in your pocket.
